FDZ series Lever Switches

产品描述Product description

FDZ series are special type lever switches, commonly for used in small home appliances such as Kitchen Mixer, etc.


◆可选带以下功能 Optional with following function:
→单极单掷 Single Pole Single Throw (SPST)
→单极单掷点动 Single Pole Single Throw Momentary Act (SPSTM)

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大电流 Max. current at 36V6A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→环境温度 Ambient temperature0°C~85°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II


◆输入端/输出端 Input side/Output side:
→焊接端子 Solder terminals 2.7×0.6mm

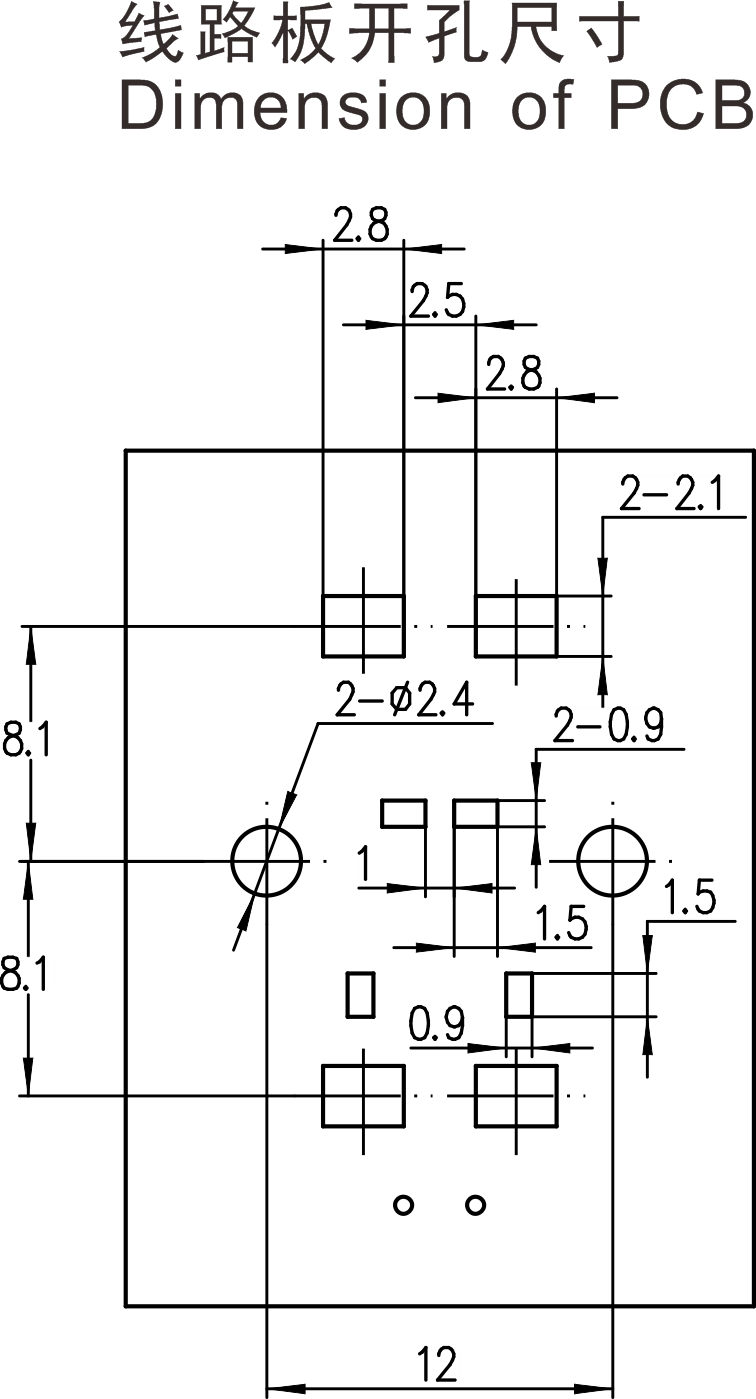

→线路板焊接端子 PCB Soldering terminals 0.8×0.6mm
→线路板焊接端子 PCB Soldering terminals 1.5×0.6mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
