FDW-1308

FDW滑动(推拉)开关

FDW series Slide (Push-pull) Switch

产品描述Product description

FDW系列是一款专用型的滑动开关,也可推拉并芙或推拨并关,应用于小电流的电动工具或家用电器上,如:直流充电电钻、烫发器等。
FDW seriesarespeciai typesiidesWitches, commoniy forusedin Low current Power-tools or home appliances, such as DCCordless Drill, Hair iron, etc.

产品特征Features

◆可选带以下功能 Optional with following function:

◆单极三档位Single Pole 3 Position (SP3P)

技术数据Technical data

机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命E lectrical life endurance≥5E4
→最大电流 Max. current at 250V4A
最大电流 Max. current at 127V8A
接触电阻 Contact resistance30m Ohm
→绝缘电阻 lnsulation resistance7M Ohm
基本介电强度 Dielectric strength of function500V
环境温度 Ambient temperature-25℃~125℃
阻燃等级 FlammabilityUL94V-0
适用于II类防护器具 Suitable for appliances of protection class II

端子类型Terminals

输入端/输出端 Input sidel/Output side:

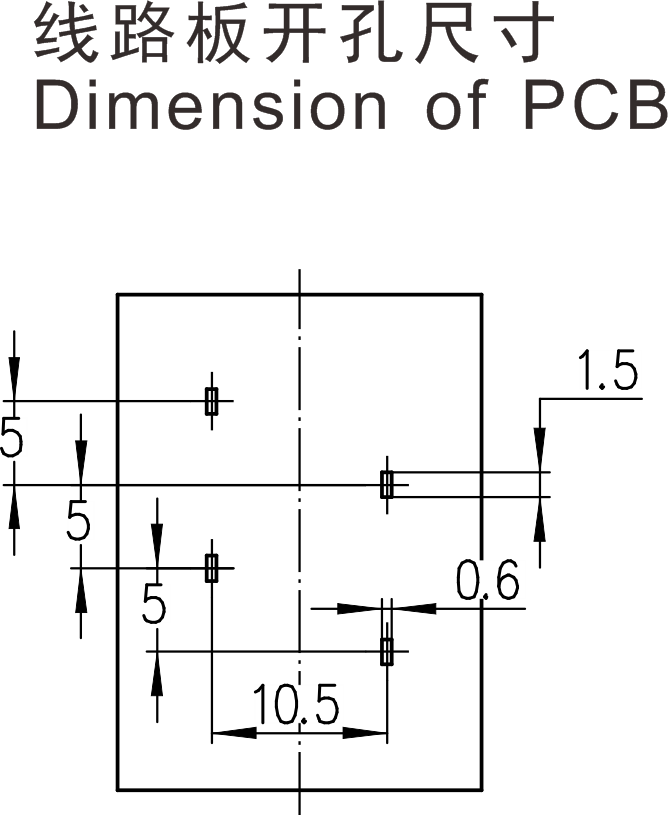

→线路板端子 PCB soldering terminals 1.0×0.6mm

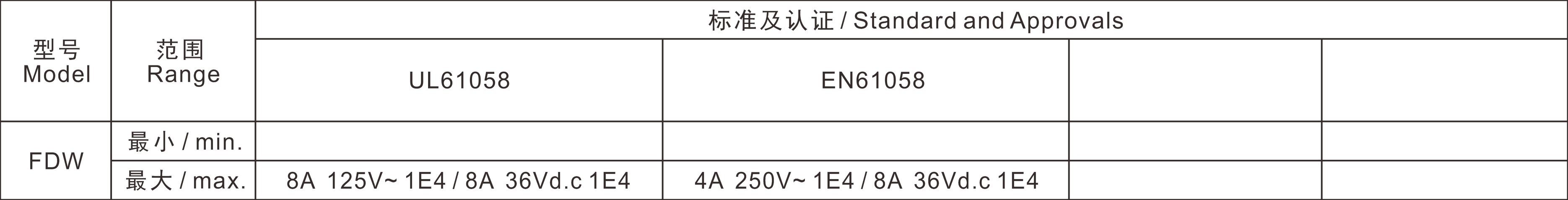

电气参数和认证 Electric Rating and Certification
