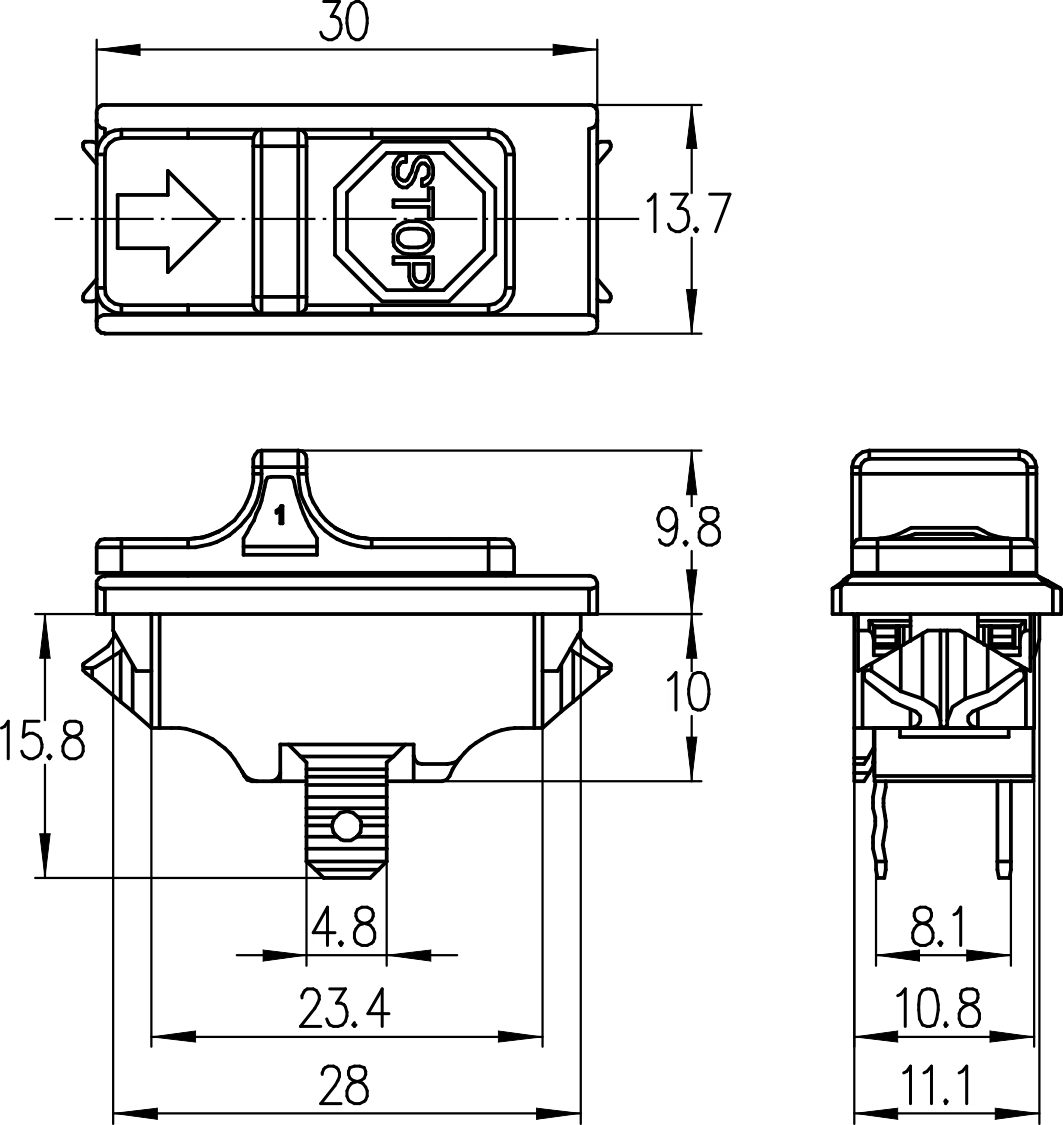

FDU-1104B

FDU滑动(推拉)开关

FDU series Slide (Push-pull) Switches

产品描述Product description

FDU系列是一款专用型的滑动并关,也可推拉并关或推拨并关,应用于汽油动力园林工具,如:汽油动力打草机.汽油动力吹吸机,汽油动力链锯等.
FDU series are speciai typesiideswitches,commonly forusedin Power Gardening tools,such as Power Grass Trimmer, PowerBlowers, Power Chain-saws, etc.

产品特征Features

可选带以下功能Optional with following function:

→单极单掷Single Pole Single Throw

→单极单掷点动Single Pole Single Throw with momentary act

技术数据Technical data

机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命Electricallife endurance≥5E4
一最大电流 Max.Inrush current at 125V4A
接触电阻Contact resistance≤30m Ohm
→绝缘电阻lnsulation resistance≥7M Ohm
基本介电强度Dielectric strength of function500V
环境温度Ambient temperature0°C~85°C
→阻燃等级 FlammabilitUL94V-0
防护等级Protection typeIP40
适用于II类防护器具 Suitable for appliances of protection class ll

端子类型Terminals

输入端/输出端lnput side/Output side:

插片端子Plug terminals

6.3×0.8mm

插片端子Plug terminals

4.8×0.8mm

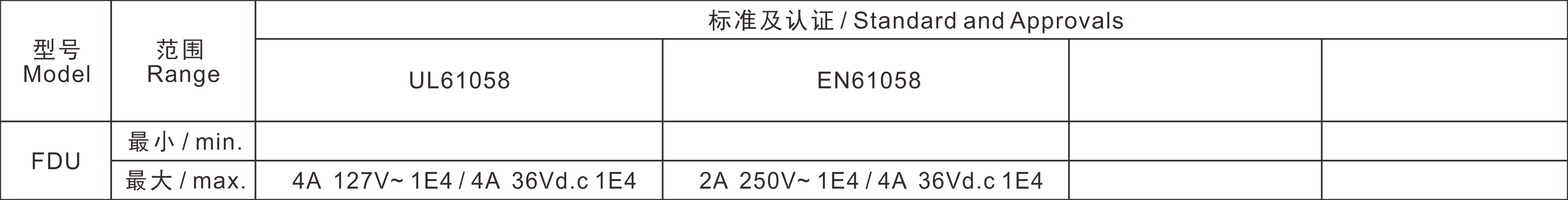

电气参数和认证 Electric Rating and Certification
