FDPX series Slide (Push-pull) Switches

产品描述Product description

FDPX系列是一款通用型的滑动开关,也叫推拉开关或推拨开关,内部为瞬间动作结构,应用于各类手持电动工具,如: 100和125角磨机,多功能工具等.
FDPX series are general type slide switches, with snap-action structure, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Multi-function Tools, etc.


◆可选带以下功能Optional with the following function: .
→单极单掷SPST (Single Pole Single Throw)
→单极双掷SPDT (Single Pole Double Throw)

技术数据Technical data

→机械耐久寿命Mechanical life endurance≥1E5
→电气耐久寿命Electrical life endurance≥5E4
→最大冲击电流Max.Inrush current at 250V72A
→最大冲击电流Max.Inrush current at 127V108A
→接触电阻Contact resistance≤30m Ohm
→绝缘电阻Insulation resistance≥7M Ohm
→基本介电强度Dielectric strength of function1500V
→加强介电强度Diele ctric strength of reinforced3000V
→环境温度Ambient temperature0°C~55°C
→阻燃等级FlammabilityUL 94V-0
→防护等级Protection typeIP40
→适用于II类防护器具Suitable for appliances of protection class II


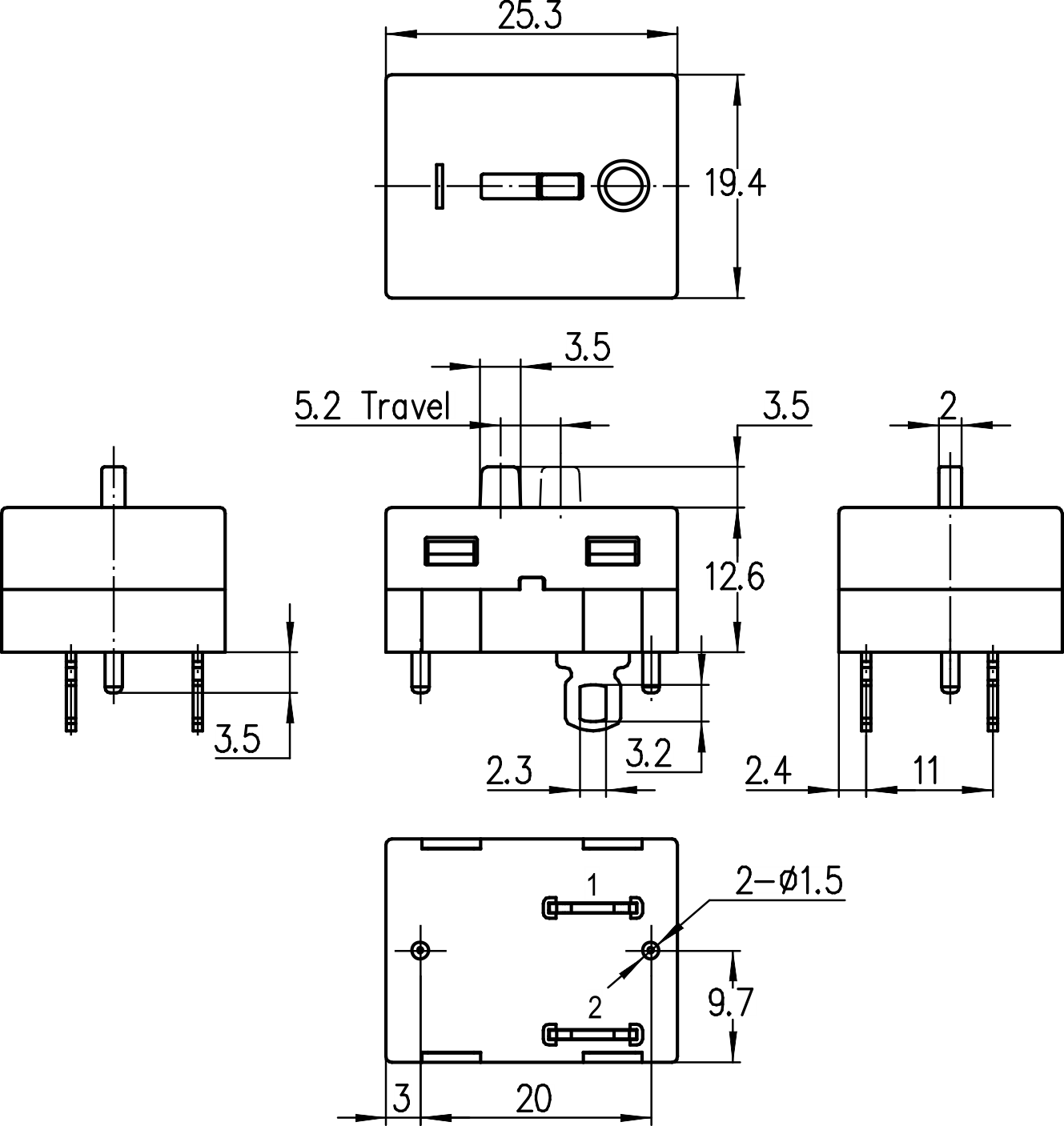

◆输入端/输出端Input side/Output side:
→焊接端子Soldering terminals 3.0X0.8mm
→线路板焊接端子PCB Soldering terminals 2.6X 0.8mm
→线路板焊接端子PCB Soldering terminals 1.0X 0.8mm
★Utility Model patented

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
