FDP-1220-BC2-DC

FDP滑动(推拉)开关

FDP series Slide (Push-pull) Switches

产品描述Product description

FDP系列是一款通用型的滑动开关,也叫推拉开关或推拨开关,应用于各类手持电动工具,如: 100和125角磨机,多功能工具等.
FDP series are general type slide switches, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Multi-function Tools, etc.

产品特征Features

◆可选带以下功能Optional with the following function:
→单极单掷SPST (Single Pole Single Throw)
→单极双掷SPDT (Single Pole Double Throw)
◆内部为跷板结构,使用寿命可达5万次
With rocker structure, the endurance life can be 50,000 cycles

技术数据Technical data

→机械耐久寿命Mechanical life endurance≥1E5/ 5E4
→电气耐久寿命Electrical life endurance≥5E4/1E4
→最大冲击电流Max.Inrush current at 250V48A
→最大冲击电流Max.Inrush current at 125V72A
→接触电阻Contact resistance≤30m Ohm
→绝缘电阻Insulation resistance≥7M Ohm
→基本介电强度Dielectric strength of function1500V
→加强介电强度Dielectric strength of reinforced3000V
→环境温度Ambient temperature0°C~55°C
→阻燃等级FlammabilityUL 94V-0
→防护等级Protection typeIP40
→适用于II类防护器具Suitable for appliances of protection class II

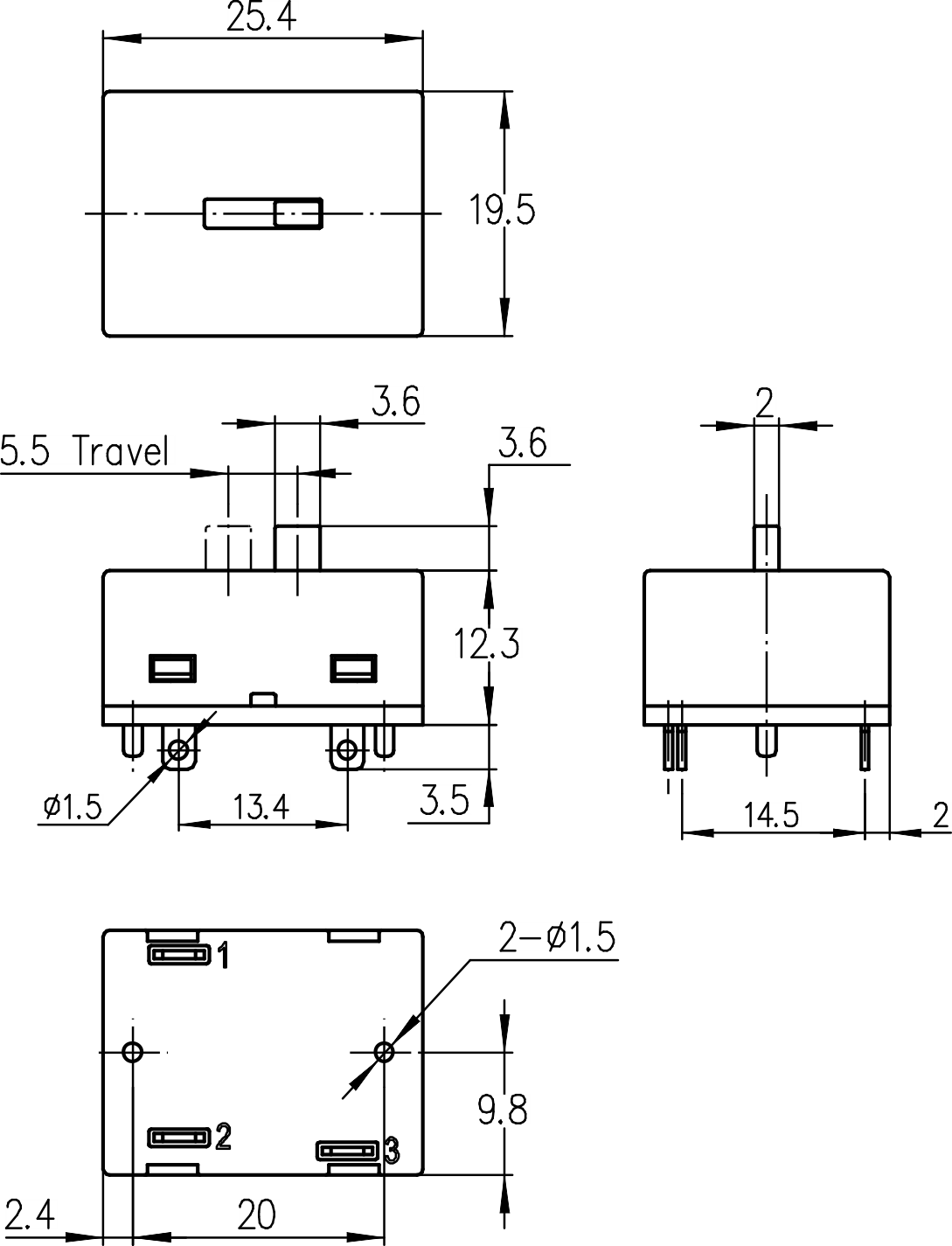

端子类型Terminals

◆输入端/输出端Input side/Output side:
→线路板焊接端子PCB Soldering terminals 1.4X 0.6mm
→焊接端子Soldering terminals 2.6X0.6mm
→焊接端子Soldering terminals 3.0X0.8mm
→插片端子Plug-in terminals 4.8X 0.8mm
★本产品荣获国家实用新型专利
★Utility Model patented

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
