FD2F series Slide (Push-pull) Switches

产品描述Product description

FD2F series are one general type slide switch, commonly for used in small appliances such as Electric Screwdrivers, Grass Trimmers, Charger, etc.


◆可选带以下功能 Optional with following function:
→双极2档位 Double Pole 2 Position (DP2P)
→双极2档位带自复位 Double Pole 2 Position with momentary act (DP2PM)
→双极3档位 Double Pole 3 Position (DP3P)

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大电流 Max. current at 250V10A
→最大电流 Max. current at 125V16A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→加强介电强度 Dielectric strength of reinforced3000V
→环境温度 Ambient temperature0°C~85°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II


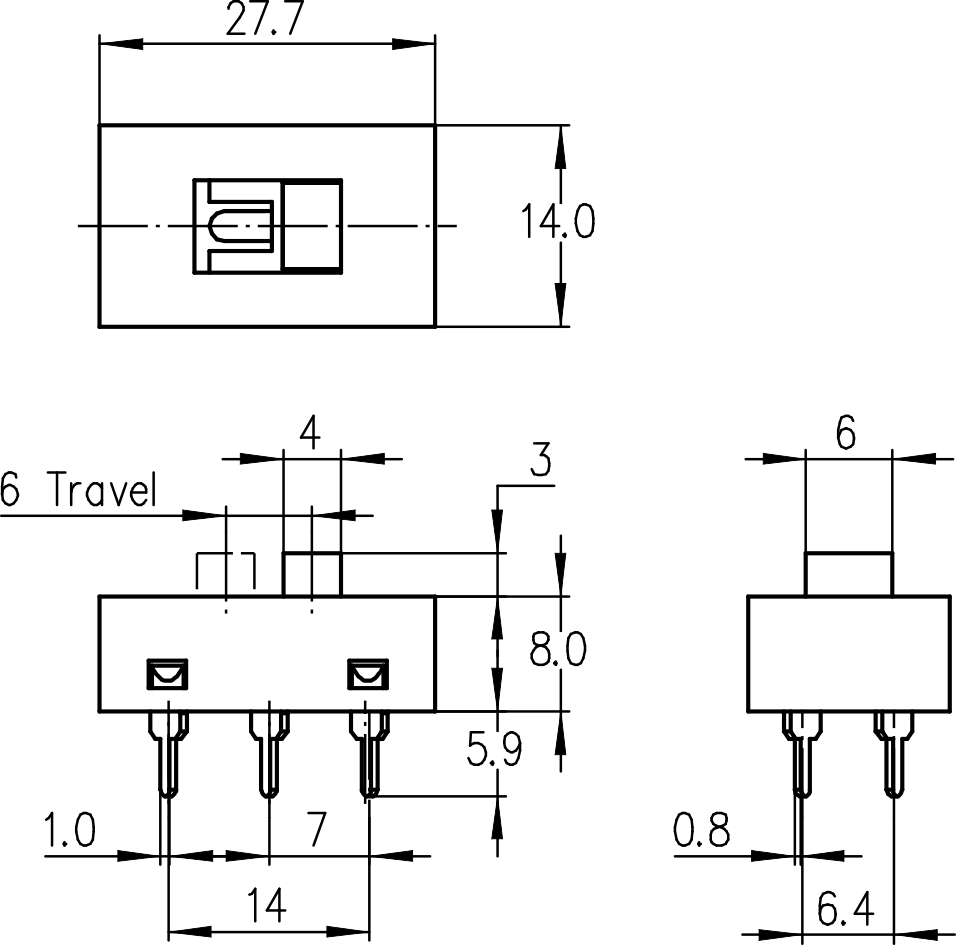

◆输入端/输出端 Input side/Output side:
→线路板焊接端子 PCB Soldering terminals 0. 8×0.8mm
→插片端子 Plug-in terminals 2.8×0.8mm
焊接端子Soldering terminals 3.0×0.8mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
