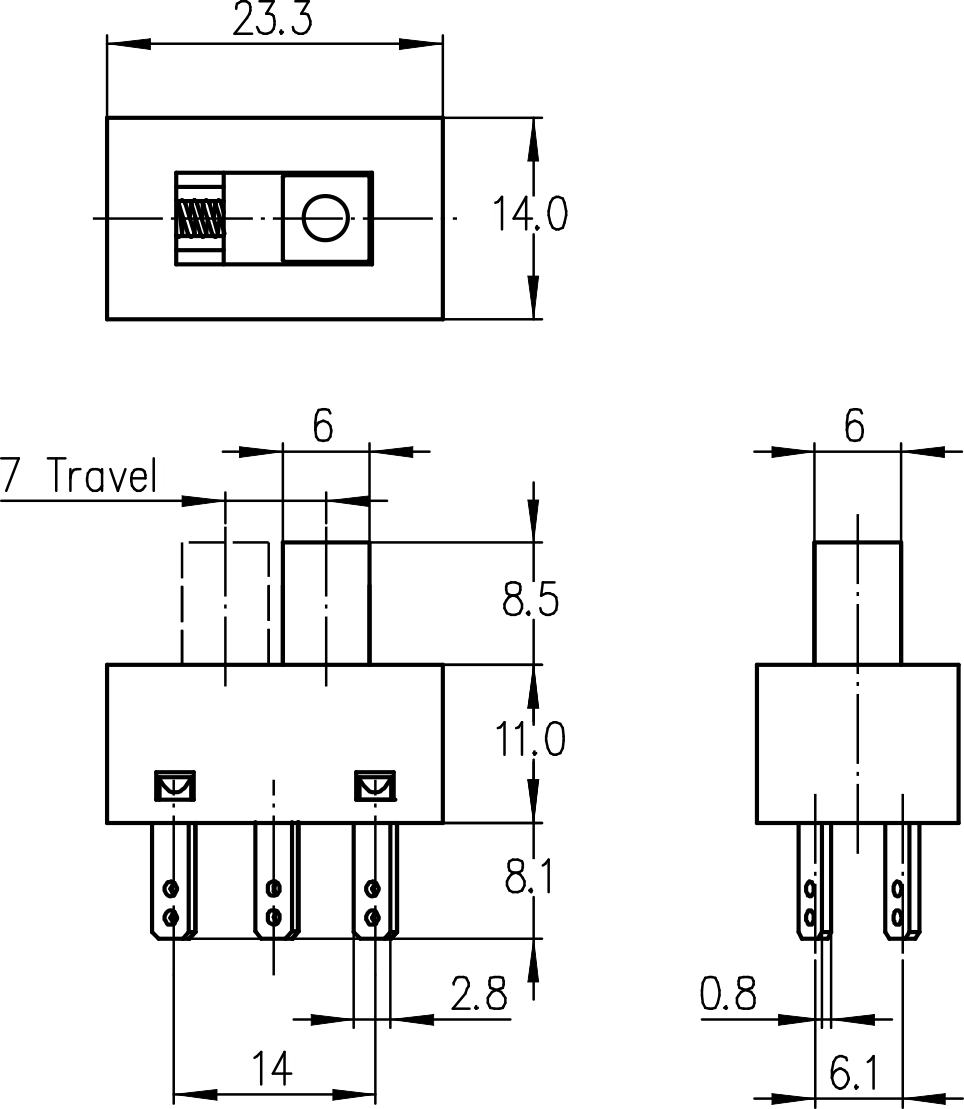

FD2F-22M12-P2-T2

FD2F滑动(推拉)开关

FD2F series Slide (Push-pull) Switches

产品描述Product description

FD2F系列是一款通用型的滑动开关,也叫推拉开关或推拨开关,应用于各类需要自复位或正反转控制的小型电器,如:电动螺丝刀,打草机,充电器等.
FD2F series are one general type slide switch, commonly for used in small appliances such as Electric Screwdrivers, Grass Trimmers, Charger, etc.

产品特征Features

◆可选带以下功能Optional with following function: .
→双极2档位Double Pole 2 Position (DP2P)
→双极2档位带自复位
Double Pole 2 Position with momentary act (DP2PM)
→双极3档位Double Pole 3 Position (DP3P)

技术数据Technical data

→机械耐久寿命Mechanical life endurance≥5E4
→电气耐久寿命Electrical life endurance≥1E4
→最大电流Max. Inrush current at 250V10A
→最大电流Max.Inrush current at 125V16A
→接触电阻Contact resistance≤30m Ohm
→绝缘电阻Insulation resistance≥7M Ohm
→基本介电强度Dielectric strength of function1500V
→加强介电强度Dielectric strength of reinforced3000V
→环境温度Ambient temperature0°C~85°C
→阻燃等级FlammabilityUL 94V-0
→防护等级Protection typeIP40
→适用于II类防护器具Suitable for appliances of protection class II

端子类型Terminals

◆输入端/输出端Input side/Output side:
→线路板焊接端子PCB Soldering terminals 0. 8X 0.8mm
→插片端子Plug-in terminals 2.8 X0.8mm
焊接端子Soldering terminals 3.0X 0.8mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
