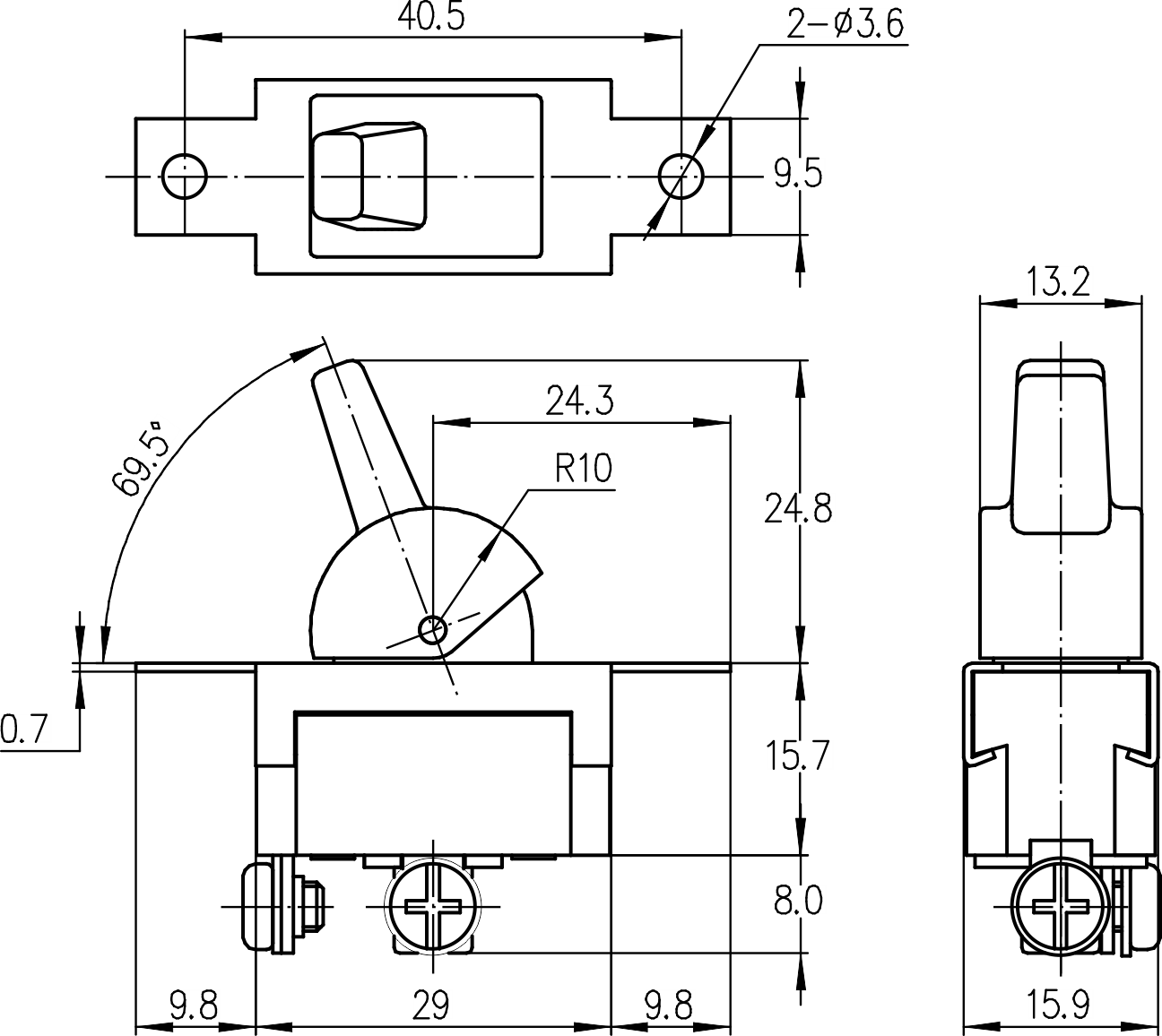

FDC-1110M1

FDC倒扳开关

FDC series Lever Switches

产品描述Product description

FDC系列是一款专用型的倒扳开关,也叫摇杆开关或拨动开关,应用于各类电动工具,如:电木铣,台式砂轮机等.
FDC series are one special type Lever switch, for used in power-tools such as Routers, Bench Grinders, etc.

产品特征Features

◆可选带以下功能Optional with following function:
→单极单掷SPST (Single Pole Single Throw)
→单极双掷SPDT (Single Pole Double Throw)

技术数据Technical data

→机械耐久寿命Mechanical life endurance≥1E5
→电气耐久寿命Electrical life endurance≥5E4
→最大冲击电流Max.Inrush current at 250V60A
→最大冲击电流Max.Inrush current at 127V96A
→接触电阻Contact resistance≤30m Ohm
→绝缘电阻Insulation resistance≥7M Ohm
→基本介电强度Dielectric strength of function1500V
→加强介电强度Dielectric strength of reinforced3000V
→环境温度Ambient temperature0°C~55°C
→阻燃等级FlammabilityUL 94V-0
→防护等级Protection typeIP40
→适用于II类防护器具Suitable for appliances of protection class II

端子类型Terminals

◆输入端/输出端Input side/Output side:
→插片端子Plug-in terminals 6.3X0.8mm
→插片端子Plug-in terminals 4.8X0.8mm
→焊接端子Soldering terminals 4.8X0. 8mm
→螺钉端子Screw terminals M3.5

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
