产品描述Product description
◆FA7-6D系列是一款通用型的按钮开关，应用于各类家用电器和园林工具，如：真空吸尘器、充电灯、打草机等。
◆FA7-6D series are general type push-button switch, commonly for used in home appliances or gardening tools such as Vacuum Cleaners, Chargeable Lights, Grass Trimmers, etc.
产品特征Features
◆可选带以下功能 Optional with following function:
→单极常开 SPNO
→双极常开 DPNO
→单极常开带自锁 SPNO with latching
→双极常开带自锁 DPNO with latching
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大冲击电流 Max. Inrush current at 250V48A
→最大冲击电流 Max. Inrush current at 125V48A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Diele ctric strength of function1500V
→加强介电强度 Diele ctric strength of reinforced3000V
→环境温度 Ambient temperature0°C~105°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

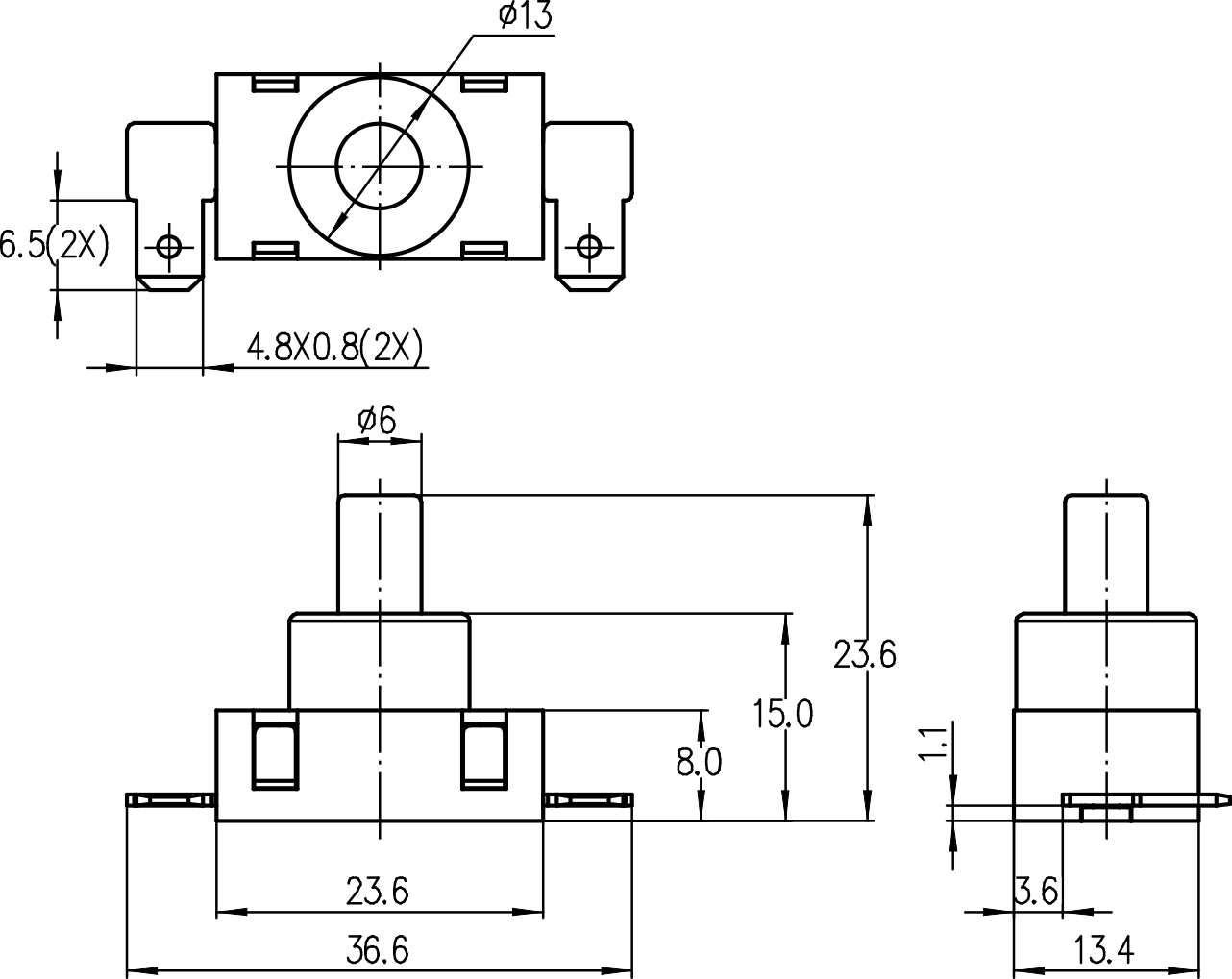

端子类型Terminals
◆输入端/输出端 Input side/Output side:
→插片端子 Plug-in terminals 4.8×0.8mm
电气参数和认证 Electric Rating and Certification
