FR4-6E-2506E-A2

FR4-6E防尘交流转盘调速器

FR4-6E series Dustproof AC Dial Wheel Speed Controls

产品描述Product description

FR4-6E系列是一款通用型的转盘电子调速器,是FR-6E系列的升级版本,集成高度防尘功能,应用于各类手持电动工具,如:电锤、曲线锯、往复锯、抛光机、搅拌器、电木铣、砂光机、100、125和150角向磨光机、模具电磨等。

FR4-6E series are one general type AC Dial Wheel Speed Controls, the update-version of FR-6E series, integrated dustproof for heavy dust appliance, for popular used in portable power-tools such as: Rotary Hammer, Jig Saws, Reciprocating Saws, Electric Mixers, Polisher Grinders, Electric Routers, Sanders, 100~150mm Angle Grinders, Die Grinders, etc.

产品特征Features

◆可选带以下功能 Optional with following function:
→全波调速 Full-waves peed control
→半波调速 Half-wave speed control
→On-Off通断功能带可变电阻输出 On-off version with Passive linear potentiometer

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大电流 Max. current at 250V10A
→最大电流 Max. current at 125V16A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function500V
→加强介电强度 Dielectric strength of reinforced3000V
→环境温度 Ambient temperature0°C~55°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II
→开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
→The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

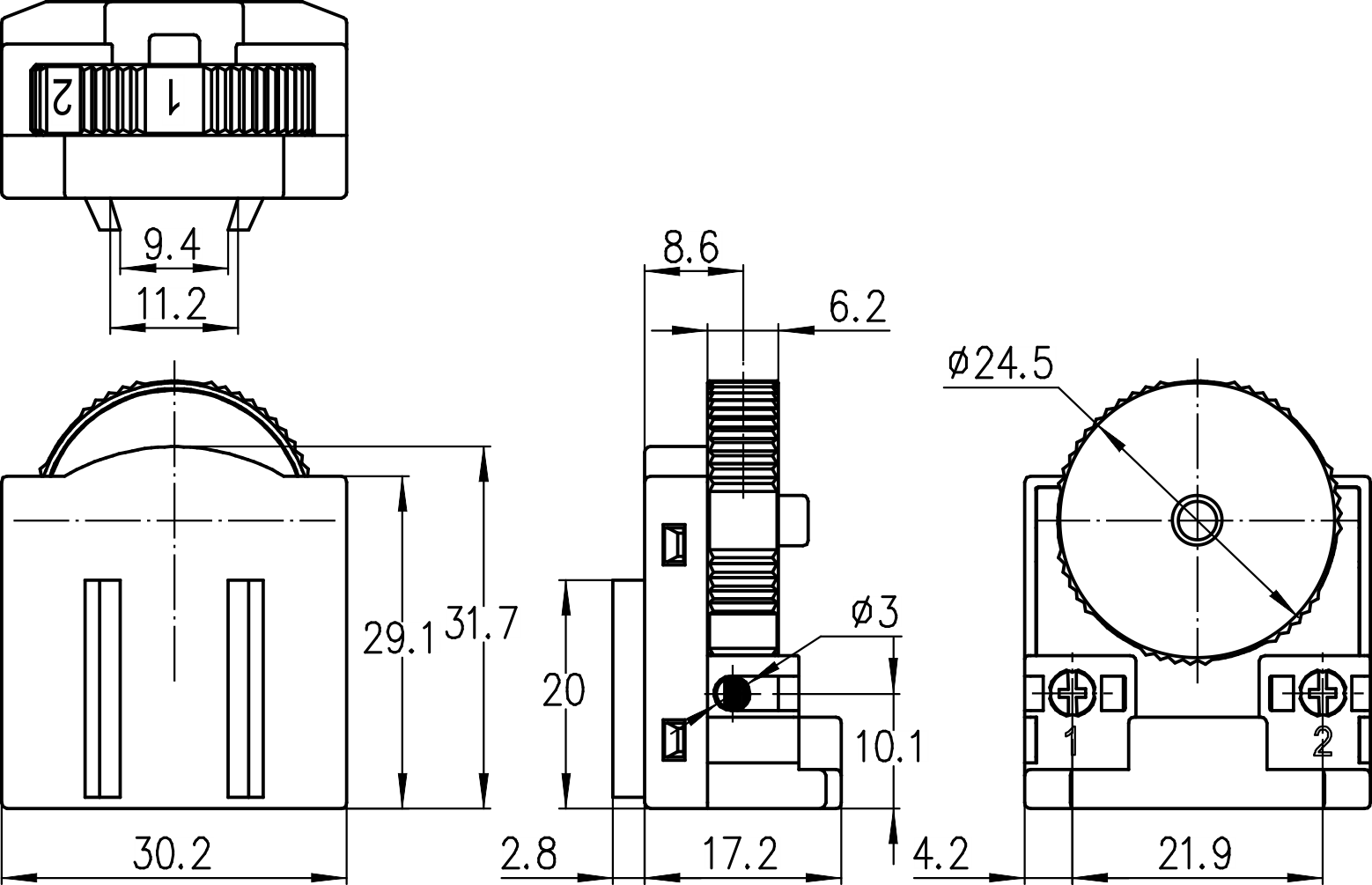

端子类型Terminals

◆输入/输出 Input side/Output side:

→接线柱端子 Pillar terminals φ=3mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
