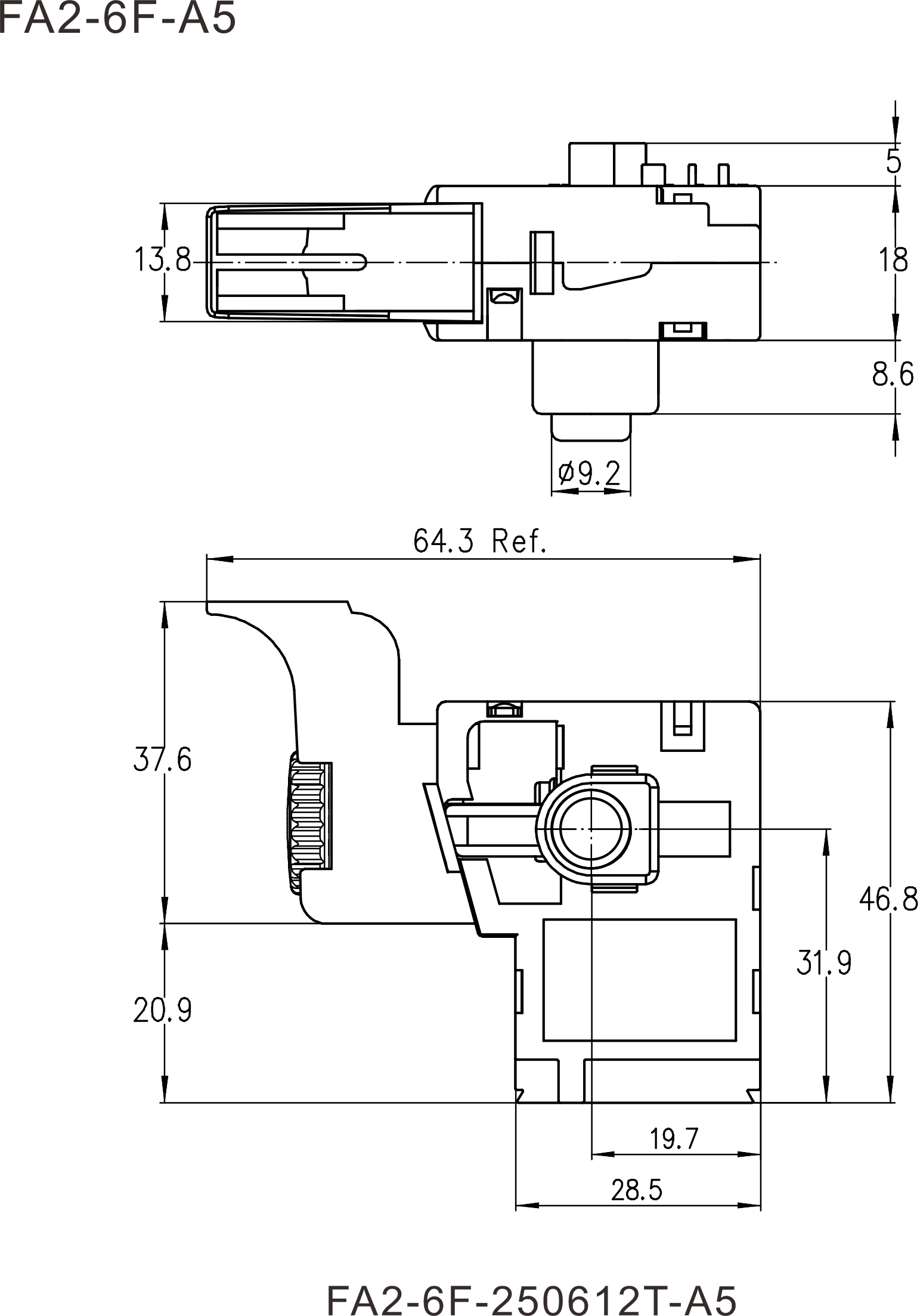

FA2-6F-A5

FA2-6F防尘交流扳机调速开关

FA2-6F series Dustproof AC Variable Speed Trigger Switches

产品描述Product description

FA2-6F系列是一款专用型扳机电子调速开关,集成防尘功能,广泛应用于各类手持式电动工具,如:电钻、冲击钻、电锤、往复锯、曲线锯、马刀锯,、搅拌器、抛光机和平板砂光机等。扳机、拨杆可根据客户要求进行定制。
FA2-6F series are one special type variable speed trigger switches, integrated dustproof, for used in portable power-tools such as: Drills, Impact Drills, Rotary Hammers, Reciprocating Saws,Jig Saws, Sabre Saws, Electric Mixers, Polishers, Orbit Sanders, etc.

产品特征Features

◆可选带以下功能 Optional with following function:
→全波调速 Full-wave speed control
→半波调速 Half-wave speed control
→On-Off通断功能 On-Off version
◆可选带以下锁定类型 Optional with following lock types:
→无锁 No Lock
→闭合锁定 Lock-on

技术数据Technical data

→机械耐久寿命 Mechanical life endurance ≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大冲击电流 Max.Inrush current at 250V48A
→最大冲击电流 Max.Inrush current at 125V72A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→加强介电强度 Dielectric strength of reinforced3000V
→环境温度 Ambient temperature0°C~55°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
→The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

端子类型Terminals

◆输入端 Input side:
→接线柱端子 Pillar terminals φ=3mm
◆输出端 Output side:
→插入式端子可插入插片端子 2.8×0.8mm
Push-in terminals for plug-in terminals 2.8×0.8mm
→换向盒端子 Reversing Box side:
→插套端子 Sleeve terminals 2.8×0.8mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
