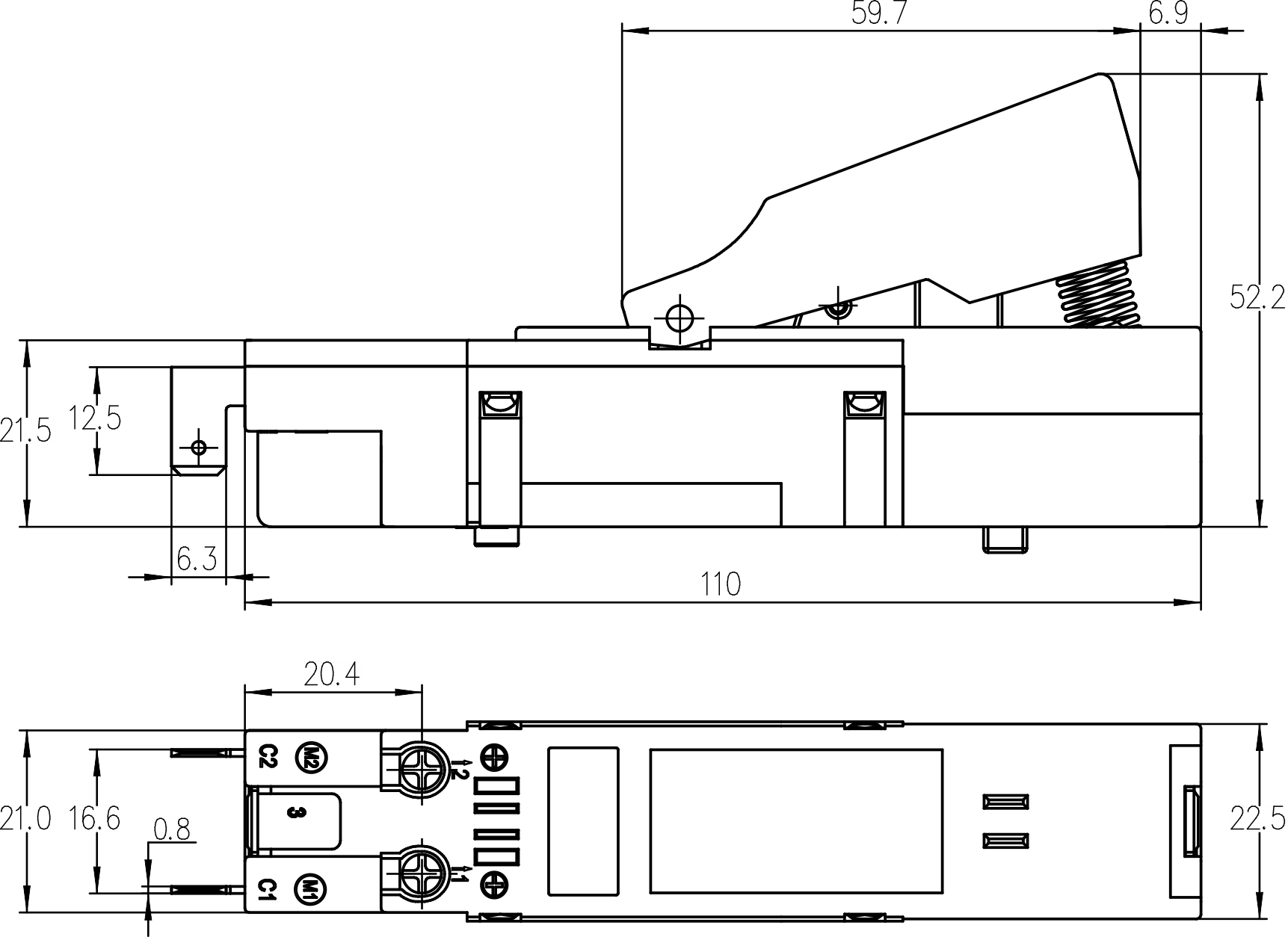

JB16-2510E

JB16防尘扳机(调速)开关

JB16 series Dustproof (Variable Speed) Trigger Switches

产品描述Product description

JB16系列是一款专用型的扳机(电子调速)开关,集成防尘功能,一般应用于大功率的电动工具,如:重型电锤、重型电镐、型材切割机、180和230角向磨光机、电链锯等。
JB16 series are special type (variable speed) trigger switches, integrated dustproof, for used in high rated power-tools such as: Heavy Rotary Hammer, Heavy Electric Demolition Hammers, Cut-off Machines, 180mm and 230mm Angle Grinders, Electric Chian Saws, etc.

产品特征Features

◆可选带以下功能 Optional with the function as follows:
→全波调速 Full-wave speed control
→半波调速 Half-wave speed control
→通断功能 On-Off version

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大冲击电流 Max. Inrush current at 250V90A
→最大冲击电流 Max. Inrush current at 125V108A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M  Ohm
→基本介电强度 Dielectric strength of function1500V
→加强介电强度 Dielectric strength of reinforced3000V
→环境温度 Ambient temperature0°C~55°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II
◆开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用。
◆The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

端子类型Terminals

◆输入端 Input side:
→接线柱端子 Pillar terminals φ=4mm
◆输出端 Output side:
→插片端子 Plug-in terminal 6.3×0.8mm
→调速功能插片端子 VSC Function Plug- in terminal 4.8×0.8mm

电气参数和认证 Electric Rating and Certification

订货信息Ordering Information
