JB09-01

JB09防尘防水欧式插座

JB09 series Dustproof and Waterproof Eurpean Socket

产品描述Product description

JB09-01是一 款通用型的英式插座,集成防尘防水功能,应用于干湿两用吸尘器及各类台式电动工具等。
JB09-01 is one general european type socket for used in U.K, integrated dustproof and waterproof, for used in Dry and Wet Vacuum Cleaners or Bench top Power-tools, etc.

产品特征Features

◆可选带以下附件 Optional with the accessories as follows:
→儿童保护滑块 Children protection slide block
→防水橡胶垫片 Waterproof rubber gasket

技术数据Technical data

→最大电流 Max. current 13A
→防护等级 Protection type IP54

端子类型Terminals

◆输入端 Input side:
→L, N极:接线柱端子 L, N Pole: Pillar terminals φ=4mm
→接地极:接线柱端子 Earthing Pole: Pillar terminals φ=4mm

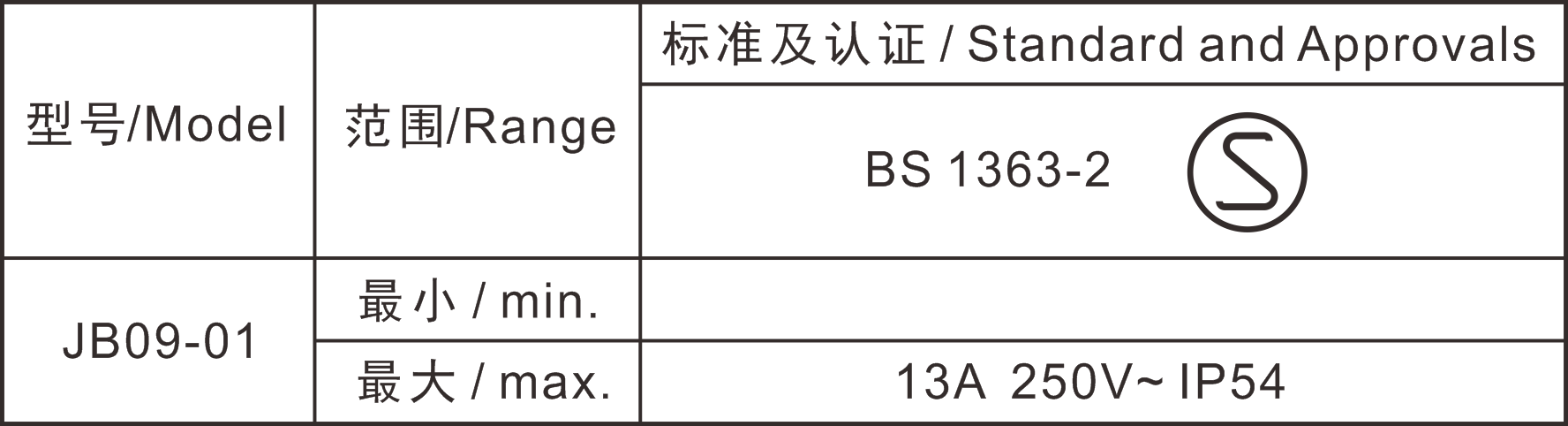

电气参数和认证 Electric Rating and Certification
