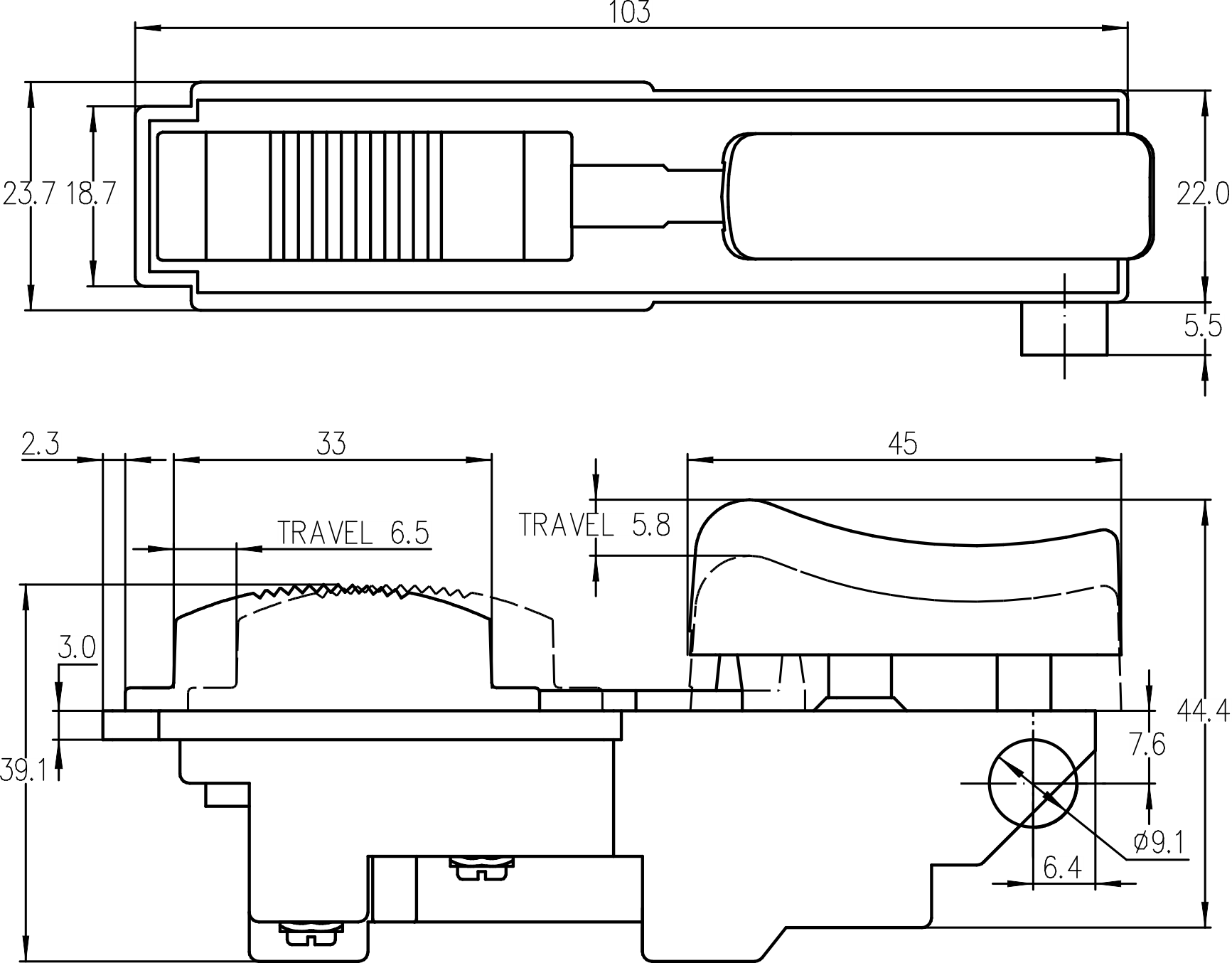

JB04-10/2-A

JB02/JB04旧款电动工具专用开关

JB02/JB04 series Switches Special for Previous Type Power-tools

产品描述Product description

◆JB04系列是一专用的旧款机型开关，集成防尘功能，适用于需要换向功能的手持式电动工具，如：角向电锤、角向电钻、电动扳手等。
◆JB04 series are one special type switch for previous type power-tools, integrated dustproof, for used in portable power-tools, such as Angle Rotary Hammers, Angle Drill, Electric Impact Wrenches, etc.

技术数据Technical data

→机械耐久寿命 Mechanical life endurance≥1E5
→电气耐久寿命 Electrical life endurance≥5E4
→最大冲击电流 Max.I nrush current at 250V60A
→最大冲击电流 Max. Inrush current at 125V60A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M  Ohm
→基本介电强度 Dielectric strength of function1500V
→加强介电强度 Dielectric strength of reinforced3000V
→环境温度 Ambient temperature0°C~55°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II

端子类型Terminals

◆输入端/输出端 Input side/Output side:
→螺钉端子 Screw terminals M3

电气参数和认证 Electric Rating and Certification
